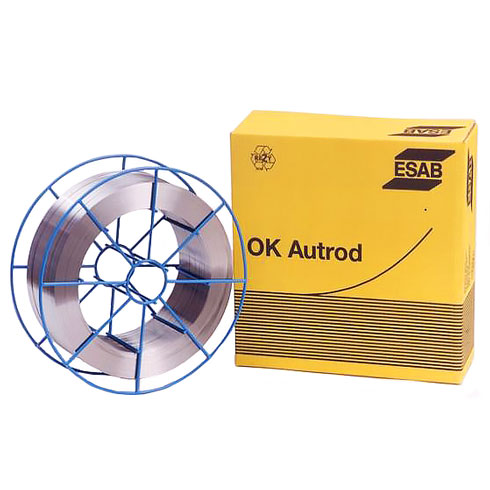

Aluminium - OK Autrod 5356

OK Autrod 5356 is the most widely used welding alloy and can be classified as a general purpose type filler alloy. OK Autrod 5356 is typically chosen because of its relatively high shear strength. The 5XXX alloy base material, welded with OK Autrod 5356, with a weld pool chemistry greater than 3 % Mg and service temperatures in excess of 65°C are susceptible to stress corrosion cracking. The alloy is non-heat treatable.

Related products

Description

Typical Tensile Properties
Condition
As Welded
Deposition Data
Current Deposition Rate Diameter Voltage Wire Feed Speed
90-210 A 0.0-0.0 kg/h 1.0 mm 15-26 V 0.0-0.0 m/min
140-260 A 0.0-0.0 kg/h 1.2 mm 20-29 V 0.0-0.0 m/min
190-350 A 0.0-0.0 kg/h 1.6 mm 25-30 V 0.0-0.0 m/min
60-170 A 0.0-0.0 kg/h 0.8 mm 13-24 V 0.0-0.0 m/min
280-400 A 0.0-0.0 kg/h 2.4 mm 26-31 V 0.0-0.0 m/min
0.0-0.0 kg/h 2.0 mm 0.0-0.0 m/min
60-170 A 0.0-0.0 kg/h 0.9 mm 13-24 V 0.0-0.0 m/min
Classifications
Wire Electrode SFA/AWS A5.10 : ER5356
EN ISO 18273 : S Al 5356 (AlMg5Cr(A))
Classifications JIS Z 3232 : A53556
Approvals
Society ABS
Grade ER 5356
Country For lots starting with RB
Approvals are based on factory location. Please contact ESAB for more information.
Consumable Characteristics
Alloy Type AlMg 5
Typical Weld Metal Analysis %
Wire Composition
Al Cr Cu Fe Mg Mn Si Zn
94.560 % 0.12 % 0.01 % 0.13 % 4.9 % 0.13 % 0.05 % 0.01 %
